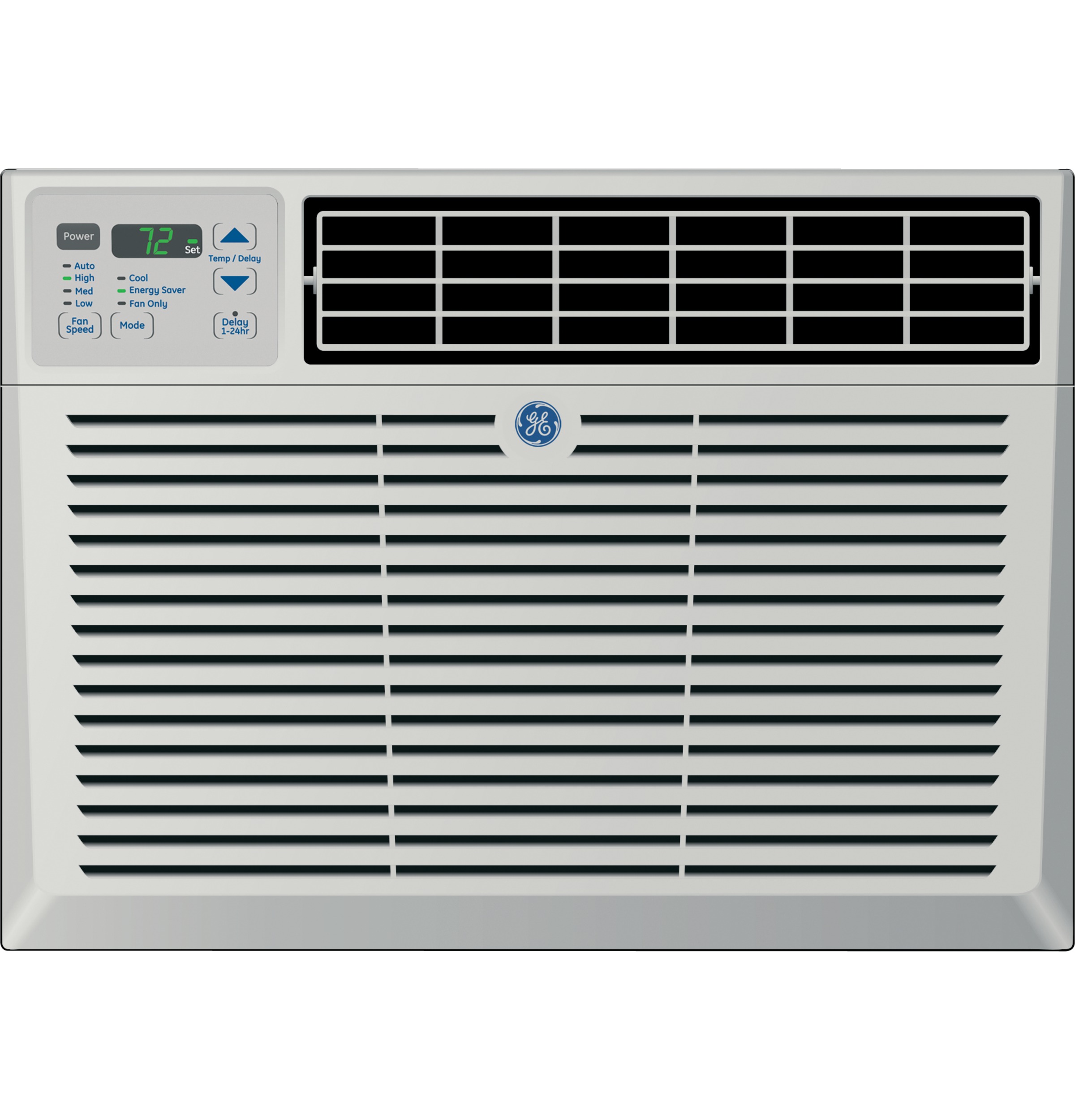

115 Volt Electronic Room Air Conditioner - AEM08LQ
115 Volt Electronic Room Air Conditioner
Model: AEM08LQ
115 Volt Electronic Room Air Conditioner
Model: AEM08LQ
Color : Other
Key Features
8,000 BTU, 10.8 EER, 115 Volts
Fits windows 22-1/2" - 38" wide, minimum height 13-1/2"
R-410A refrigerant
Electronic digital thermostat control
Remote control
Energy Saver feature
24-hour timer
3 cooling / 3 fan speeds
Available from R W McDonald and Sons, serving customers throughout Pennsylvania.
Features
8,000 BTU, 10.8 EER, 115 Volts
Fits windows 22-1/2" - 38" wide, minimum height 13-1/2"
R-410A refrigerant
Electronic digital thermostat control
Remote control
Energy Saver feature
24-hour timer
3 cooling / 3 fan speeds
Fixed chassis
EZ Mount window installation kit included
Certifications
AHAM
CUL
California Prop 65
EEV
UL
Specifications
FEATURES
| Remote Control | Yes |
| Thermostat Type | Electronic |
| Rotary Compressor | Yes |
| Louver Style | 4-Way |
| Delay Timer | 24-Hour On/Off |
| Filter Type | One Touch Lift-Out |
| Mounting Type | EZ Mount |
| Plug Type | Parallel/NEMA 5-15 |
| Unit Type | Cool Only |
| Refrigerant Type | R410A |
| Chassis Type | Fixed |
| Vent/Air Exchange Exhaust | Top Discharge |
| Fan Speed Selections | 3 Cooling |
| Fan Speed Selections | 3 Fan Only |
| Airflow (cfm) Roomside | 195/170 |
CAPACITY
| Cooling EER (BTUH / Watt) | 10.8 |
| Dehumidification (pts./hr.) | 1.7 |
| Cooling BTUH (MAX) | 8,000 Btu |
WEIGHTS & DIMENSIONS
| Min./Max. Window Opening Width (in.) | 22-1/2 /38 |
| Approximate Shipping Weight | 57 lb |
| Depth to Louvers | 4.71875 in |
| Grille Depth | 1.40625 in |
| Minimum Window Opening Height (in.) | 13.5 in |
| Net Weight | 50 lb |
| Overall Depth | 15 23/32 in |
| Overall Height | 12 3/4 in |
| Overall Width | 18 19/32 in |
POWER / RATINGS
| Cooling - Rated Cooling Amps AHAM | 7.1 |
| Cooling - Watts | 740 |
| Voltage (MAX) | 115 V |
APPEARANCE
| Color Appearance | Light Cool Gray |
| Installation | EZ Mount |
ECONOMICAL / QUIET
| Energy Saver | Yes |
Dimensions & Weight
| Width | 18.59 in. |
| Height | 12.75 in. |
| Length | 15.72 in. |
| Weight | 50 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 23.59 in. |
| Shipping Height | 17.75 in. |
| Shipping Length | 20.72 in. |
| Shipping Weight | 90 lbs. |
| Total of Shipping Weight | 90 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 2.16 ft³ |
| Dimensional Weight | 26.81 lbs. |
| Total of Cubes | 2.16 ft³ |
| Total of Dimensional Weight | 26.81 lbs. |
